4POE+1UTP 10/100/1000Mbps POE Ethernet Switch

FOB Reference Price:Get Latest Price
$1.00 - $27.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Bton
Model Number:
BT-6005GE, BT-6005GE
Type:
Optical Fibers
No. of Fiber:
1.
Use:
FTTH
Product Name:
4POE+1UTP 10/100/1000Mbps POE Ethernet Switch
Factory:
B&TON
PoE Standard:
IEEE 802.3af/at
POE port:
4
PoE Port Power:
15.4W/25.4W
Bandwidth:
1.6Gbps (non-blocking)
Address Database Size:
1K
MTBF:
190,000 hours (about 21 years)
Forwarding Mode:
Store-And-Forward
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day POE Ethernet Switch
Packaging & Delivery
Packaging Details
Packing box:22.5*18.6*6.5cm
Weight: 0.7KG/pc
32~34pcs/carton
Carton size: 56*40*49cm
Port
SZ
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Product Description

4POE+1UTP 10/100/1000Mbps POE Ethernet Switch


Description:

The POE switch provides power and data transmission via Cat cables. 4 POE ports supply power at the standard of IEEE802.3af/at. Auto-sensing function can supply power to PD device (IEEE802.3af/at standard). If the PoE device disconnected, it would stop supplying power. The POE switch features simple and reliable design, automatic identification of PoE supply voltage and power, speed, full duplex and Auto Uplink cable type.

This cost-effective switch can apply to wireless access point (AP) and IP-based surveillance network solutions.


Features:
1.. 10/100/1000Mbps self-adaptive,down-link ports support PoE
2.. All the ports support Auto MDI/MDIX
3.. PoE port supports Power up to 15.4W(IEEE802.3af), 25.4W(IEEE802.3at)
4.. Compatible with Powered device applied to IEEE802.3af/at
5.. Support IEEE802.3x Full Duplex and Duplex back-pressure flow control function
6.. Automatic MAC address learning and aging
7.. 4K MAC Address
8.. 16G Broadband
9.. High performance full load power configuration
10. LED indicator monitor working status, easy for fault detection

Specifications
Model Number
BT-6005GE
POE Port
4 Port
Bandwidth
1.6Gbps
Uplink port
1 UTP port
Address Database Size
1K
MTBF
190,000 hours
Forwarding Mode
Store-And-Forward
PoE Standard
IEEE 802.3af/at

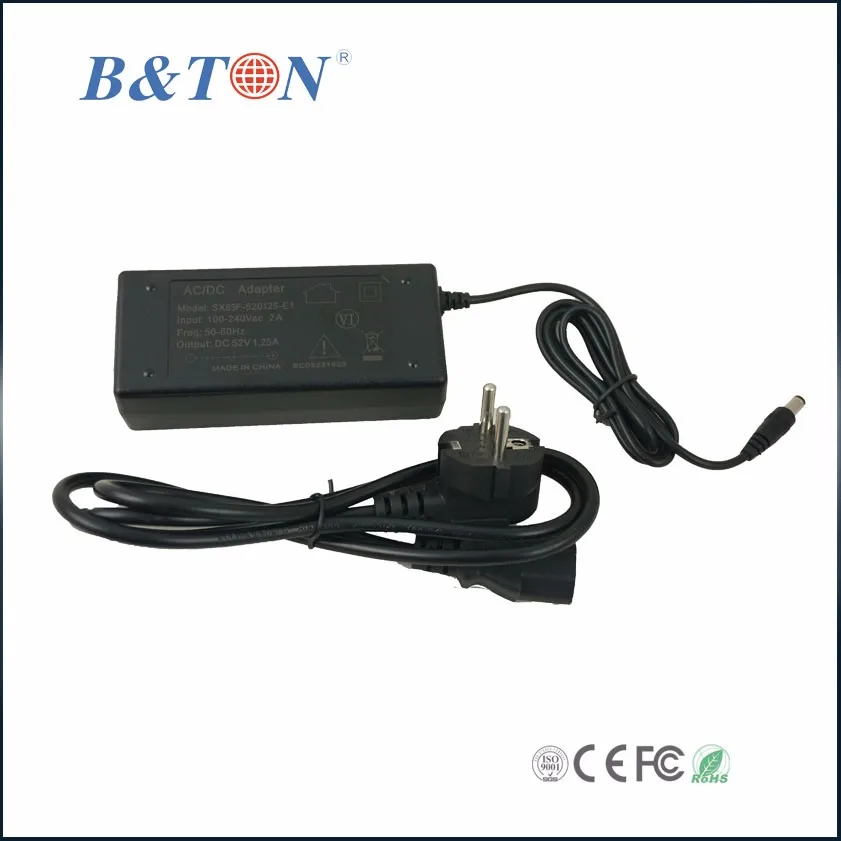

Power Supply
DC 52V 1.25A, AC100-240V 50/60HZ
PoE Port Power
15.4W/25.4W
PoE Feature
MDI/MDIX
Default Mode
Common switch
POE line
End-span(12+,36-)
Mid-span(45+ 78-)
Price terms
Factory price
Certifications
CE FCC ROHS
Mac
4K
Network protocol
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af, IEEE 802.3ab 1000BASE-T
Speed
Ethernet:
10M half-duplex
20M full-duplex
Fast Ethernet:
100M half-duplex
200M full-duplex
Gigabit Ethernet:
2000Mbps full-duplex
Network Media
10Base-T: 2pair Cat 3 or more UTP/STP(≤150m)
100Base-TX:  2pair Cat 5 or more UTP/STP(≤150m)
1000Base-T: 4pair Cat 5 or more UTP/STP(≤100m)

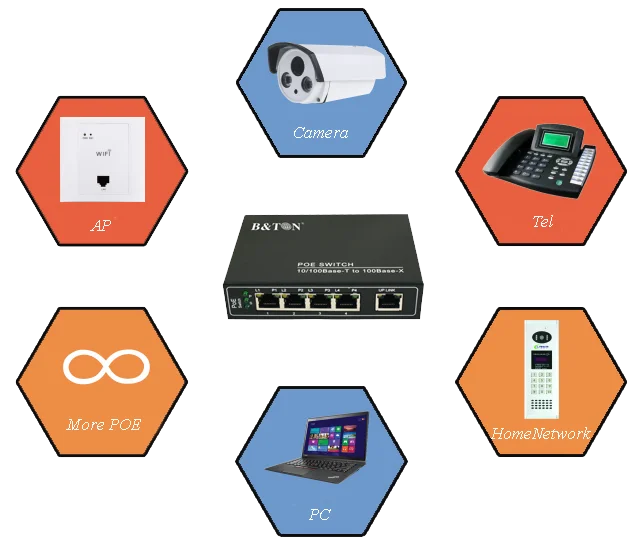

Application

HD monitor transmission and power supply
Wireless AP layout transmission and power supply
Network telephone transmission , intelligent house and home system
Intelligent transportation supervisory system(ITS)
High-speed Way supervisory/Tele-Communication System
Security protection system, TV medical treatment
Long-distance Muti-media Schooling, Campus monitoring
Long-distance broadcast television transmission system
High-building Security Protection, Military Tele-Com projects

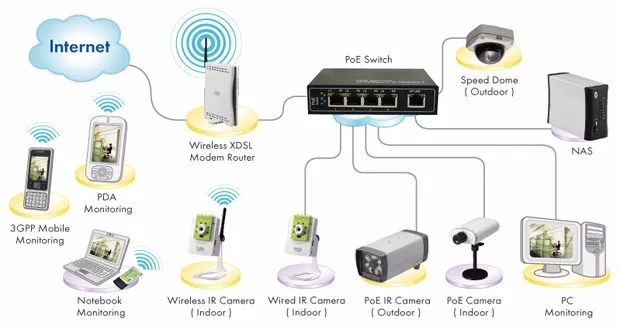

Diagram

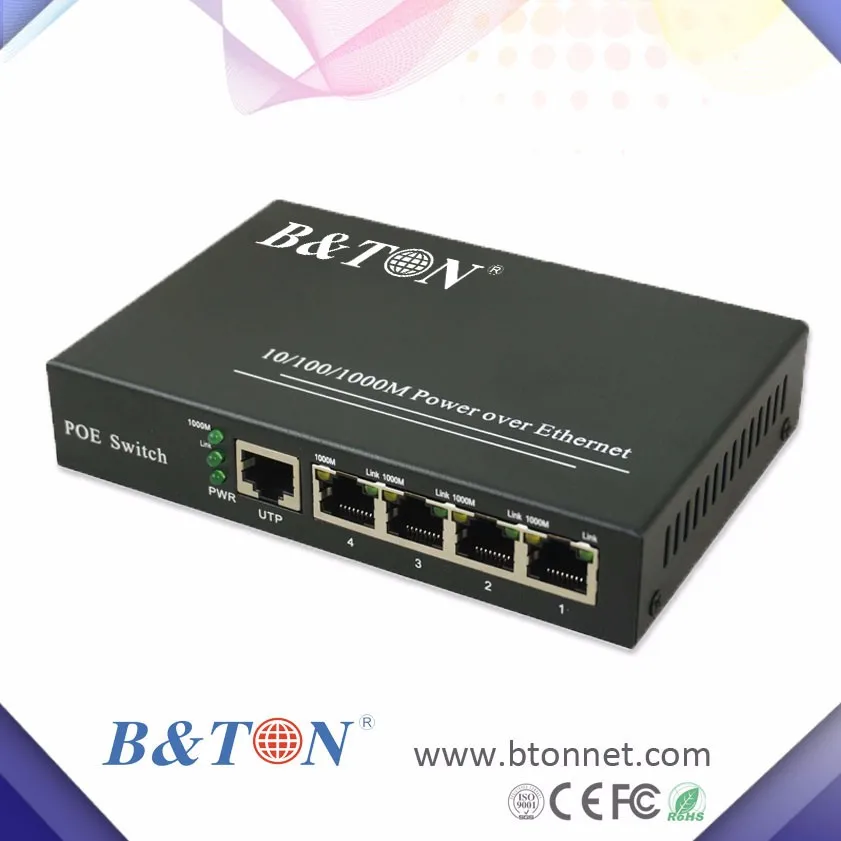

Detailed Images
Order Information

POE Fiber Switches

1, 10/100Mbps IEEE802.3AF,15.4W/25.4W per port, 48~57V
BT-6002FE : 1POE in +1POE out,10/100Mbps
BT-6101FE-25 : 1POE+1Fiber,10/100Mbps, Dual Fiber,1310nm,25km, SC
BT-6101FE-25A : 1POE+1Fiber,10/100Mbps, Single Fiber, 1310/1550nm,25km, SC
BT-6005FE : 4POE+1UTP,10/100Mbps
BT-6104FE-25 : 4POE+1Fiber,10/100Mbps, Dual Fiber,1310nm,25km, SC
BT-6104FE-25A : 4POE+1Fiber,10/100Mbps, Single Fiber, 1310/1550nm,25km, SC
BT-6009FE : 8POE+1UTP,10/100Mbps
BT-6108FE-25 : 8POE+1Fiber,10/100Mbps, Dual Fiber,1310nm,25km, SC
BT-6108FE-25A : 8POE+1Fiber,10/100Mbps, Single Fiber, 1310/1550nm,25km, SC
BT-6218FE-GESFP : 16 10/100Mbps POE+2 1000M UTP+2 1000M SFP(Combo)
BT-6226FE-GESFP : 24 10/100Mbps POE+2 1000M UTP+2 1000M Fiber SFP(Combo)

2, 10/100/1000Mbps IEEE802.3AF,15.4W/25.4W per port, 48~57V
BT-6002GE : 1POE in +1POE out,10/100/1000Mbps
BT-6101GE-20 : 1POE+1Fiber,10/100/1000Mbps, Dual Fiber,1310nm,20km, SC
BT-6101GE-20A : 1POE+1Fiber,10/100/1000Mbps, Single Fiber, 1310/1550nm,20km, SC
BT-6005GE : 4POE+1UTP,10/100/1000Mbps
BT-6104GE-20 : 4POE+1Fiber,10/100/1000Mbps, Dual Fiber,1310nm,20km, SC
BT-6104GE-20A : 4POE+1Fiber,10/100/1000Mbps, Single Fiber, 1310/1550nm,20km, SC
BT-6105GE-20 : 4POE+1UTP+1Dual Fiber,10/100/1000Mbps, 1310nm, 20km, SC
BT-6105GE-20A : 4POE+1UTP+1Single Fiber,10/100/1000Mbps, 1310/1550nm, 20km, SC
BT-6105GE-SFP : 4POE+1UTP+1SFP,10/100/1000Mbps
BT-6009GE : 8POE+1UTP,10/100/1000Mbps
BT-6010GE : 8POE+2UTP,10/100/1000Mbps
BT-6109GE-20 : 8POE+1UTP+1Dual Fiber,10/100/1000Mbps,1310nm,20km, SC
BT-6109GE-20A : 8POE+1UTP+1Single Fiber,10/100/1000Mbps,1310/1550nm,20km, SC
BT-6109GE-SFP : 8POE+1UTP+1SFP,10/100/1000Mbps
BT-6208GE-SFP : 8POE+2SFP,10/100/1000Mbps
BT-6108GE-20 : 8POE+1Fiber,10/100/1000Mbps, Dual Fiber,1310nm,20km, SC
BT-6108GE-20A : 8POE+1Fiber,10/100/1000Mbps, Single Fiber, 1310/1550nm,20km, SC
BT-6208GE-20 : 8POE+2Fiber,10/100/1000Mbps, Dual Fiber,1310nm,20km, SC
BT-6208GE-20A : 8POE+2Fiber,10/100/1000Mbps, Single Fiber, 1310/1550nm,20km, SC
BT-6218GE-SFP : 16POE+2SFP,10/100/1000Mbps
BT-6226GE-SFP : 24POE+2SFP,10/100/1000Mbps

Related products

1POE 1RJ45 POE Media converter

Fiber port: Duplex/Simplex/SFP

4POE + 1RJ45+1Fiber POE Switch

Fiber port: Duplex/Simplex/SFP

8POE +1/2 Fiber POE Switch

Fiber port: Duplex/Simplex/SFP

B&TON Others serials Products:

Fiber Media Converter

10/100Mbps, dual Fiber, single fiber, 25km~120km

10/100/1000Mbps, dual fiber, single fiber , 20km~100km

Interface: SC, ST, FC, LC(optional)

Mode: Singlemode, Multmode

Chip: 113C,8306,8305,175G,101F etc,.

Support: Dipswitch(LFP), Vlan


HD-TVI/CVI/AHD/Analog Fiber Video Converter

1ch, 2ch, 4ch, 8ch, 16ch, 32 channels HD-CVI/TVI/AHD/analog over one multimode or single-mode optical fiber.

Support 720p/25,720p/30,720p/50,720p/60,960p,1080p/25,1080p/30 video etc.

Interface: SC, ST,  FC(default)

optional function: Audio, ethernet

Unmanaged Fiber Switch

1Fiber 2RJ45

1Fiber 4RJ45

1Fiber 8RJ45

2Fiber 2RJ45

2Fiber 4RJ45

2Fiber 8RJ45

8Fiber 2RJ45

SFP/LC To Fiber Switch

1SFP 1RJ45

1SFP 2RJ45

1SFP 4RJ45

1SFP 8RJ45

2SFP 2RJ45

2SFP 4RJ45

2SFP 8RJ45

8SFP 1RJ45

Telephone Fiber Optic Converter(RJ11)

1-32Channel voice access, supports caller ID feature and reverse polarity billing functions;

Voice port supports FXO and FXS port, EM2/4 audio interface, FXO port docking with program-controlled switchboard, FXS port connected to the user's telephone;

Contact closure to Fiber Converter

1/2/4/8/16 channels

Bidirectional contact closure over fiber;

Unidirectional contact closure over fiber;

Single fiber, signlemode

FC

20KM

PLC/FTB Splitter

1x2, 1x4, 1x8,1x16,1x32,1x64 PLC Splitter

Steel tube or ABS BOX

SFP Transceiver

155Mbps,

1.25Gbps, BIDI SFP, WDM SFP

Copper SFP

10G SFP+ SR,LR,ER,ZR, BIDI SFP+

40G QSFP SR4, LR4

10G DAC Cable

40G QSFP DAC Cable

Our B&TON Company

Shenzhen BTON Weiye Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter, digital video optical transmission systems and Optical Transceiver Modules .All of these products are widely applied in many industries like telecom ,traffic, government organization, campus network ,oil industry, electric power system, and public security etc. B&TON is one of the biggest and fastest growing multi products manufacturing and service provider(including OEM,ODM service and customized) in Shenzhen China.

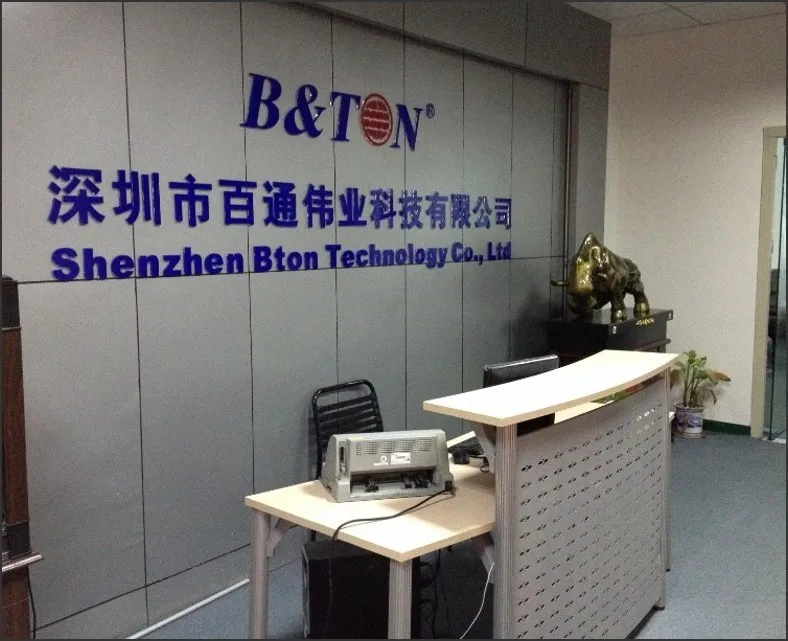

BTON Factory


Workshop view
India Convergence 2016
CIOE Exhibition
The China International Optoelectronic Exposition

Certificates:

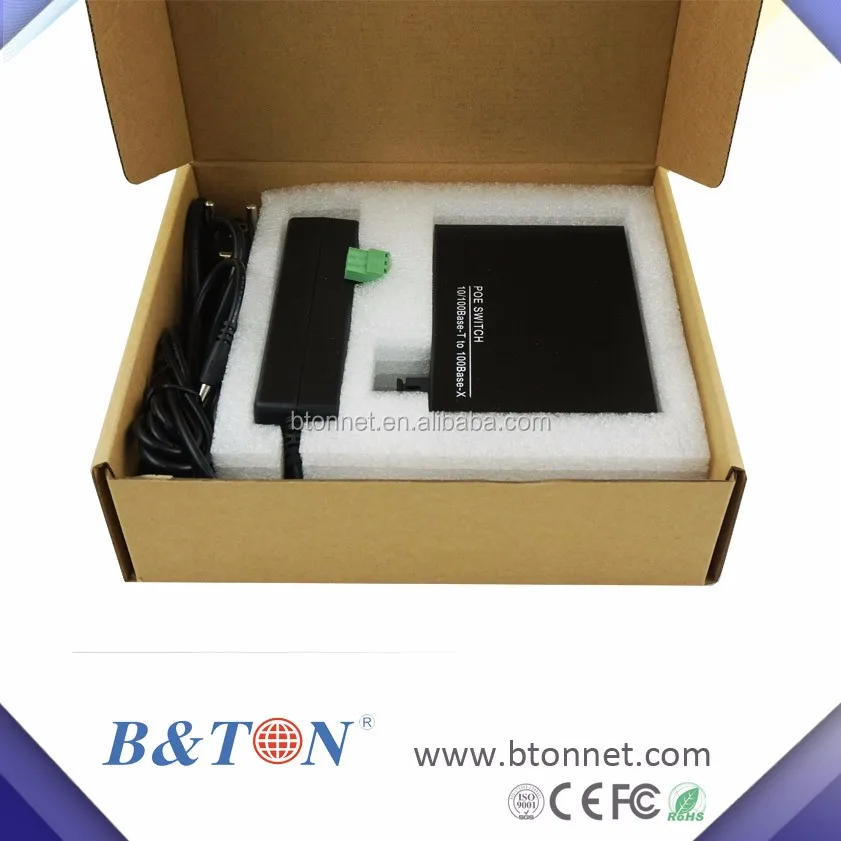

Packing & Delivery
